Array

Automated, Scalable, and Versatile

PRINTERS

4 Element / HT

3D Printers

MATERIAL MANAGEMENT

4 Palette X

1 Per Element Printer

MATERIAL

32 Material Pods

8 Per Element Printer

STORAGE

1 Cart

Stores Completed Print Beds

AUTOMATION

40 Print Beds

For Continuous Printing

AUTOMATION

1 Robotic Arm

Automatically Removes/Replaces Print Beds

Why Array

Large build volume and automated print monitoring means low downtime and high throughput.

Print up to 8 materials in a single part with industrial materials, including PEEK, PEKK
and Ultem.

With one operator able to run the equivalent of 250 3D printers, 3D printing large production volumes is finally possible.

Manage Team Workflow With Canvas

Control all your printing workflows with Canvas. With smart queueing, detailed dashboards and project management you have full control of your print queue and key performance metrics.

Reduce your cost per part by up to 95%

With Array's high throughput and low-cost base, see your cost per part drop by up to 95%. Input your best estimates in our total cost per part calculator and one of our representatives will get in touch to give you a sense of how Array will impact your bottom line.

TOTAL COST PER PART CALCULATOR

Step 1/4

1. Select Materials

Choose up to 5

Please select an option to continue

2. Indicate # of prints/month

(For this year)

Please select an option to continue

3. Indicate # of prints/month

(Next year)

Please select an option to continue

4. What is the average print time for each of your prints?

(Hours)

Please select an option to continue

Spend your time where it counts

Rely on Array's bed removal and material changing systems so your team spends less time working with printers and more time on other activities.

Precision printing, every time

Automated bed leveling ensures your printhead stays the correct distance from the build plate, allowing for greater consistency within your prints.

Unlock ultimate flexibility with Palette X

Print with up to 8 materials in a single part to unlock an entirely new range of prints. Mosaic's Palette X technology brings a new dimension to your parts.

Industry Leading Support And Service

Our customers always come first. Access Mosaic's top tier local support, warranty and optional Service Plans to ensure your Array is running for years to come

Premium White Glove Setup

Our Mosaic Ambassadors install, setup and train your teams about the ins and outs of how Array works. From your first print to mass scale production, we will have you up and running in no-time.

Spec Sheet

Download the official spec sheet for Array

Array

High throughput. Low Cost. Minimal downtime.

Array

Array

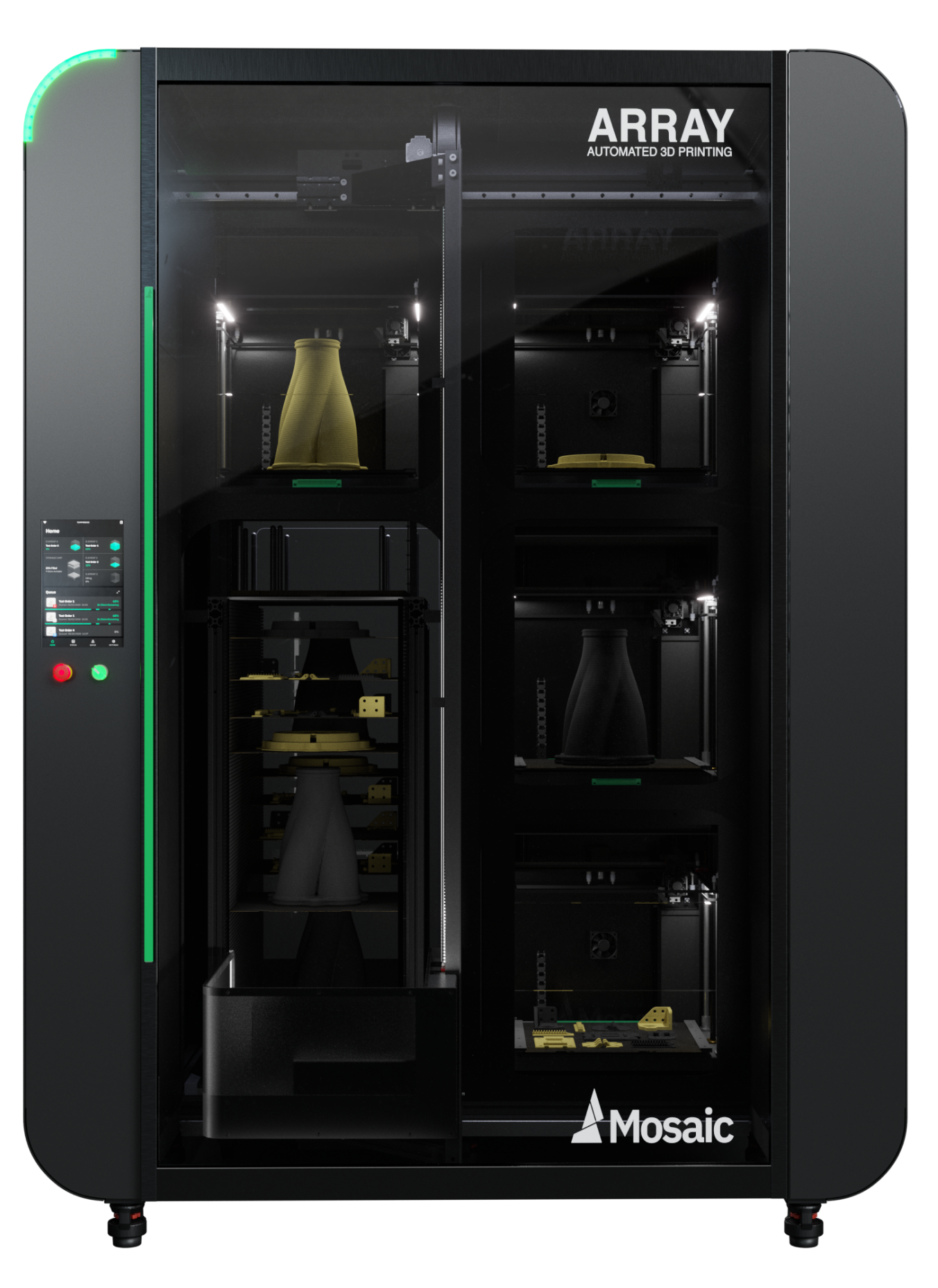

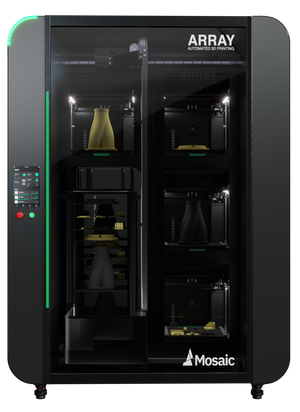

Automated 3D Printing System

The Woods
The Woods
The Woods
The Woods
The Woods

Array

Automated 3D Printing System

Shipping Summer 2023

By including our flagship automated 3D printing platform maximizes output and reduce printer downtime.

Select Type

Select Configuration

ARRAY SPECIFICATIONS

  • Dimensions
  • Properties
  • Operation
  • Platform
  • Service and Support
  • Material Compatibility

  • Dimensions:
  • Array Weight (No Elements):
  • Array Weight (x4 Elements):
  • Gross Weight:
  • Print Technology:
  • Build Envelope:
  • Construction:
  • Power Supply Input:
  • 355mm
  • 925 lbs
  • 1325 lbs
  • Fused Filament Fabrication (FFF) enhanced with Mosaic’s patented Series Enabled Multi-Material Extrusion (SEME)
  • 1.6m x 3.2m x 2.1m (5’2” x 11’2”, 5’2”)
  • Durable all metal motion systems, aluminum outer chassis
  • 3 crates on wooden pallets, all less than 33 inches in width. 2 crates contain Array, and the 3rd crate contains 4 Element printers
  • 230V AC, 30A

  • Layer Resolution:
  • XYZ Resolution:
  • Max Speed (Travel):
  • User Interface:
  • Monitoring:
  • Status Indication:
  • Nozzle:
  • Compatible Models:
  • Serviceability:
  • 20-320 microns
  • 12.5μm, 12.5μm, 0.4μm (X ,Y, Z)
  • 200mm/s
  • 5” color touch screen or remote access from Canvas
  • Live camera inside chamber
  • RGB stack light
  • 0.4mm hardened steel nozzle
  • Print Head 0.4, Print Head 0.4 HT
  • Modular extruder, tool-less removable in < 60 seconds

  • Build Speed:
  • Build Plate:
  • Heated Bed:
  • Thermal Chamber:
  • Max Nozzle Temperature:
  • External Fume Extraction:
  • < 100mm/s, max printhead move speed of 200mm/s
  • Spring steel build plate, automatically changed via internal robotic arm
  • 0 - 120°C
  • 0 - 80°C
  • 300 - 500°C
  • Integrated exhaust fan with optional 3” external fume extraction hook up (not included)

  • Supplied Software:
  • Connectivity / File Transfer:
  • Canvas Array, Canvas Teams
  • Wifi, LAN (Ethernet)

  • Warranty:
  • Training:
  • Extended Support:
  • 24-month warranty for (HT users)
  • 3 days of on-site training
  • Our business hours are between 9:00 am - 6:00 pm Eastern (UTC‑4). We typically respond to messages within the day, but can take up to ~1 business day. Please email us at support@mosaicmfg.com or give us a call at (647) 570-0375.

  • Supported Materials:
  • Material Type:
  • Material Bays:
  • Mosaic PLA, Mosaic PETG, Mosaic Saphire, Mosaic Matrix, Mosaic Soluble M1, Mosaic ABS, Mosaic Breakaway, Mosaic PEEK (HT), Mosaic PEKK (HT), Mosaic Ultem (HT) 9085, Mosaic ESD
  • Mosaic certified, Non-Mosaic, other materials not supported
  • 8 x 1500cc Material Pods Per Printer (12,000cc/Printer Total) 32 x 1500cc Material Pods in Array (48,000cc/Array Total)

ARRAY SPECIFICATIONS

Dimensions:

355mm

Array Weight (No Elements):

925 lbs

Array Weight (x4 Elements):

1325 lbs

Gross Weight:

Print Technology:

Fused Filament Fabrication (FFF) enhanced with Mosaic’s patented Series Enabled Multi-Material Extrusion (SEME)

Build Envelope:

1.6m x 3.2m x 2.1m (5’2” x 11’2”, 5’2”)

Construction:

Durable all metal motion systems, aluminum outer chassis

Construction:

3 crates on wooden pallets, all less than 33 inches in width. 2 crates contain Array, and the 3rd crate contains 4 Element printers

Power Supply Input:

230V AC, 30A

Layer Resolution:

20-320 microns

XYZ Resolution:

12.5μm, 12.5μm, 0.4μm (X ,Y, Z)

Max Speed (Travel):

200mm/s

User Interface:

5” color touch screen or remote access from Canvas

Monitoring:

Live camera inside chamber

Status Indication:

RGB stack light

Nozzle:

0.4mm hardened steel nozzle

Compatible Models:

Print Head 0.4, Print Head 0.4 HT

Serviceability:

Modular extruder, tool-less removable in < 60 seconds

Build Speed:

< 100mm/s, max printhead move speed of 200mm/s

Build Plate:

Spring steel build plate, automatically changed via internal robotic arm

Heated Bed:

0 - 120°C

Thermal Chamber:

0 - 80°C

Max Nozzle Temperature:

300 - 500°C

External Fume Extraction:

Integrated exhaust fan with optional 3” external fume extraction hook up (not included)

Supplied Software:

Canvas Array, Canvas Teams

Connectivity / File Transfer:

Wifi, LAN (Ethernet)

Warranty:

24-month warranty for (HT users)

Training:

3 days of on-site training

Extended Support:

Our business hours are between 9:00 am - 6:00 pm Eastern (UTC‑4). We typically respond to messages within the day, but can take up to ~1 business day. Please email us at support@mosaicmfg.com or give us a call at (647) 570-0375.

Supported Materials:

Mosaic PLA, Mosaic PETG, Mosaic Saphire, Mosaic Matrix, Mosaic Soluble M1, Mosaic ABS, Mosaic Breakaway, Mosaic PEEK (HT), Mosaic PEKK (HT), Mosaic Ultem (HT) 9085, Mosaic ESD

Material Type:

Mosaic certified, Non-Mosaic, other materials not supported

Material Bays:

8 x 1500cc Material Pods Per Printer (12,000cc/Printer Total) 32 x 1500cc Material Pods in Array (48,000cc/Array Total)

FREQUENTLY ASKED QUESTIONS

Array can complete 40 build plates of printing in a row before reloading is required. For many users, this is at least 72 hours of continuous “lights out printing” although this is dependent on the prints being run and the density on the build plate.

The printers know the height of each print and track it within the software. The space is allocated based on this information, and a buffer space is added to ensure no collisions occur.

Each Array needs a Canvas Array account to run, and Canvas is currently cloud based. To explore other options, please reach out to our team, sales@mosaicmanufacturing.com.

Yes, the Array based model (Array 8) comes with 4 Element printers each with 2 material pods and a low temperature print head. Material pods as well as high temperature printing capabilities can be added to all printers based on the requirements of your use case.

Each Element has an integrated HEPA filter that can be easily replaced (every 6-12 months, based on usage). Array also has a 3” hook up on the top for an external fume extraction or filtration system.

Array is 1.6m x 3.2m x 2.1m. To account for door swinging radii, we’d recommend a space that is 3.8m x 1.6m and with a minimum ceiling height of 2.1m.

Array is proudly designed and made in Canada.

Array ships disassembled, and will be assembled, built, and tested by Mosaic as part of your white-glove setup service. Mosaic will also conduct training of your internal staff.

Parts will be available for purchase through Mosaic’s online store, or through your point of contact at Mosaic.

Array can be configured with one or the other.

Yes, both Element and Array work with compatible third-party materials. Array will require a third-party NFC tag on any third-party spools to be registered by the Array for use.

There is a 12 month warranty for Array. If purchasing an extended warranty, or an Array HT, there is a 24 month warranty.
