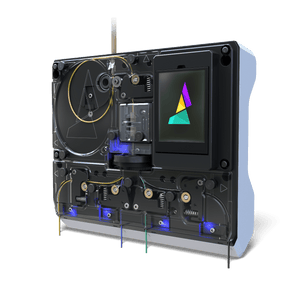

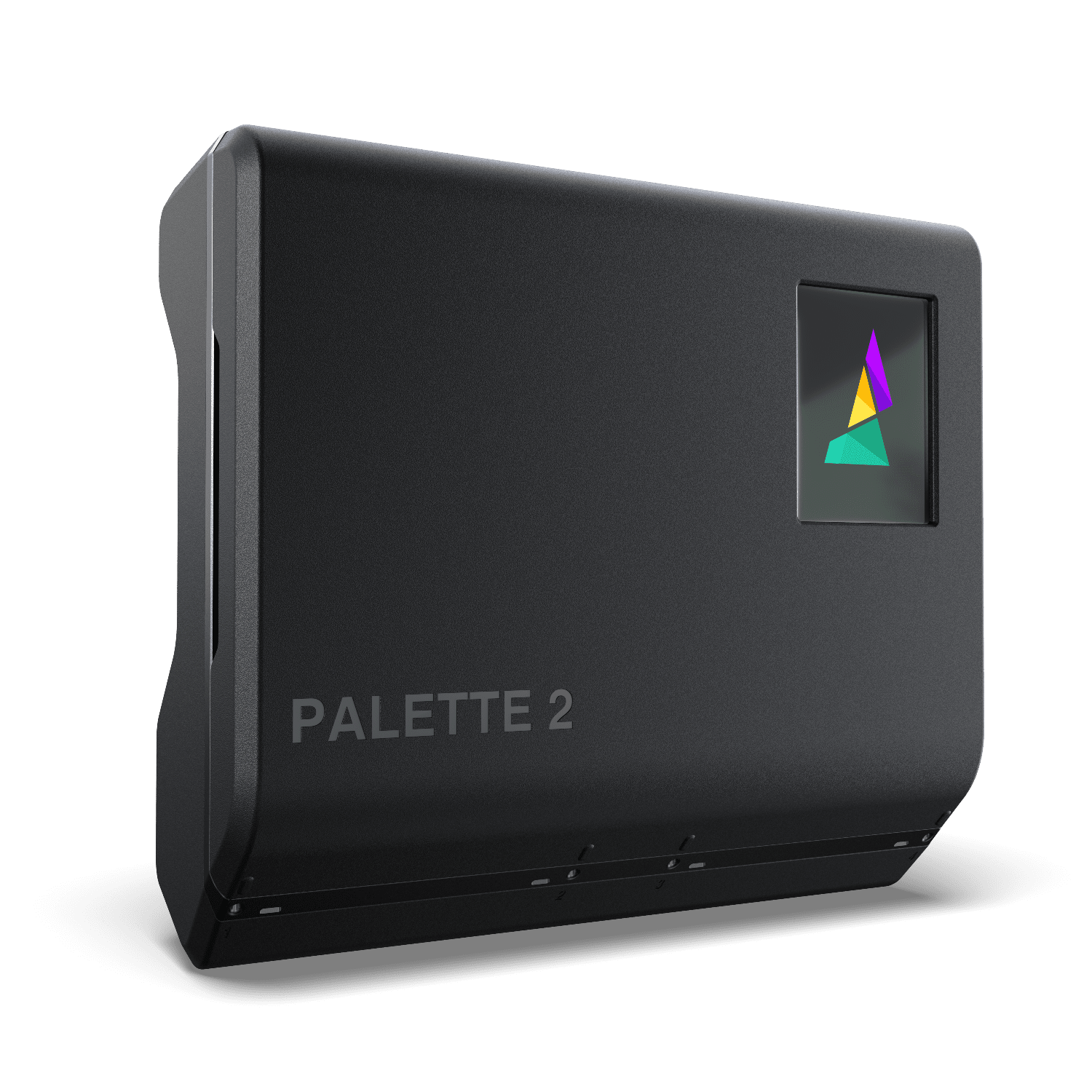

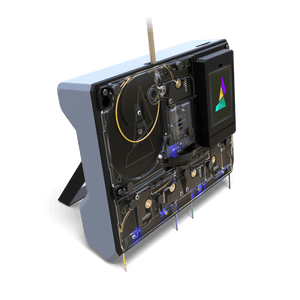

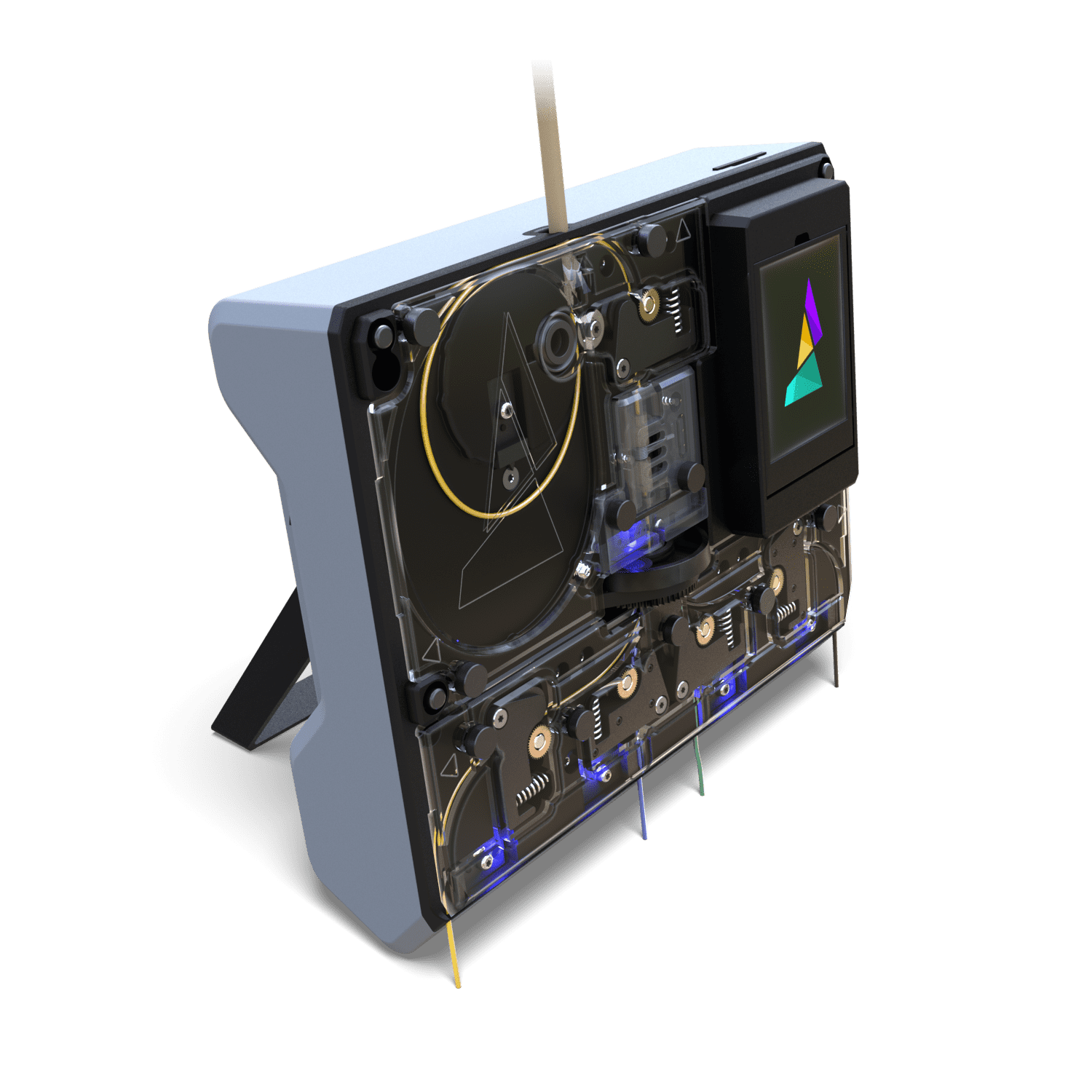

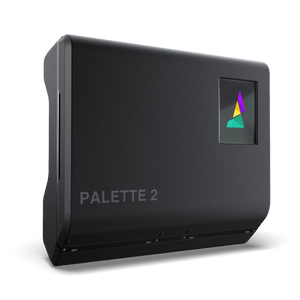

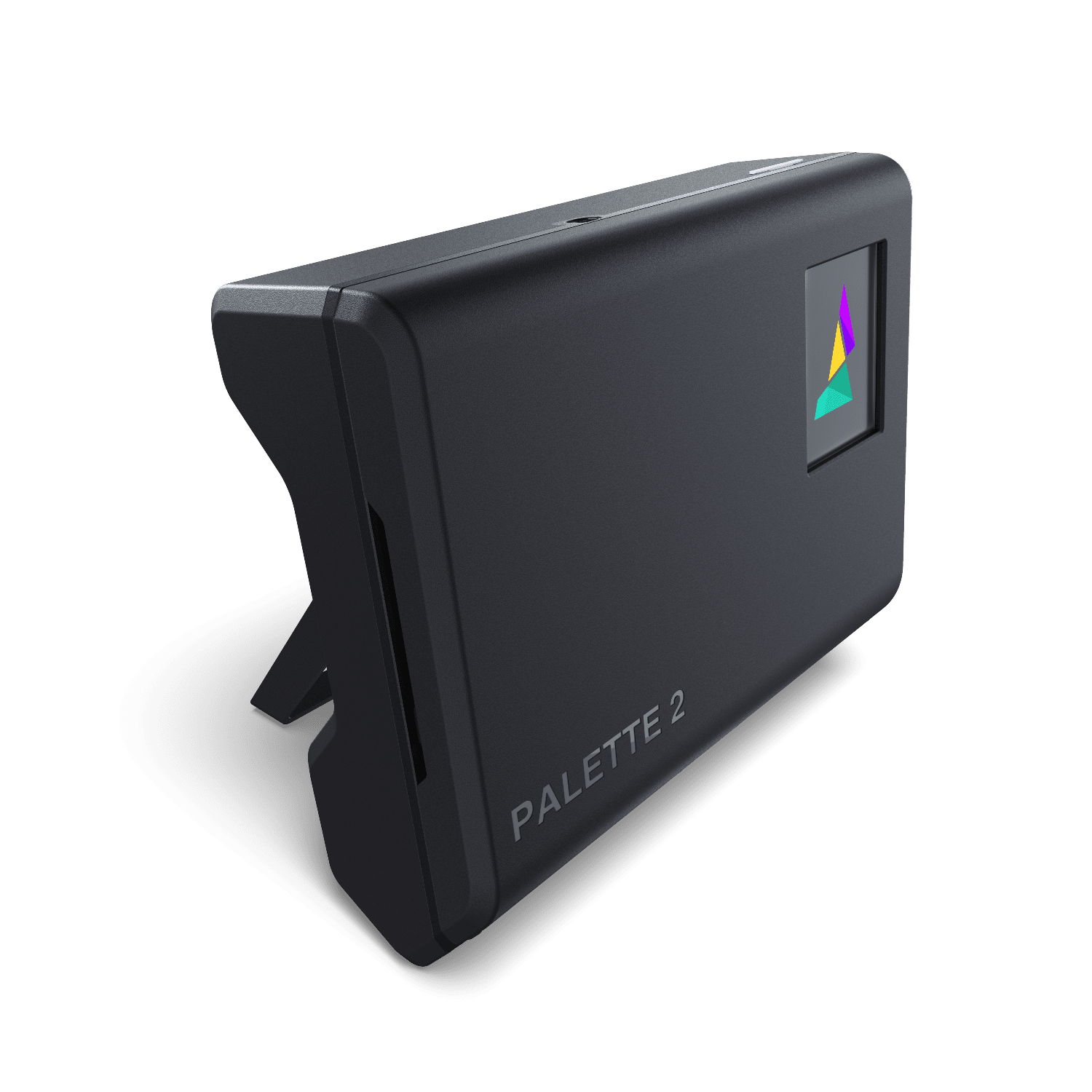

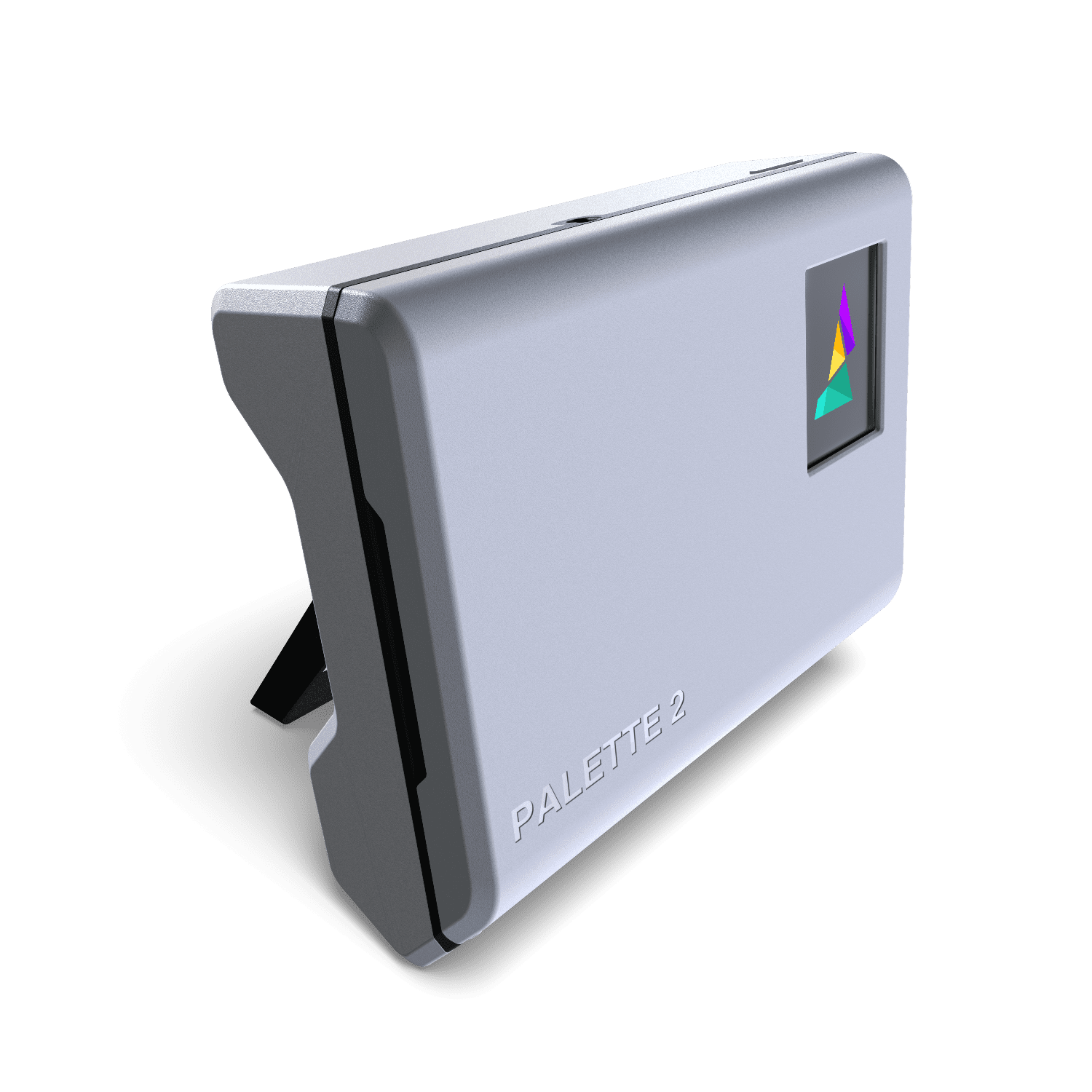

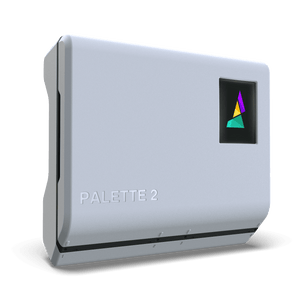

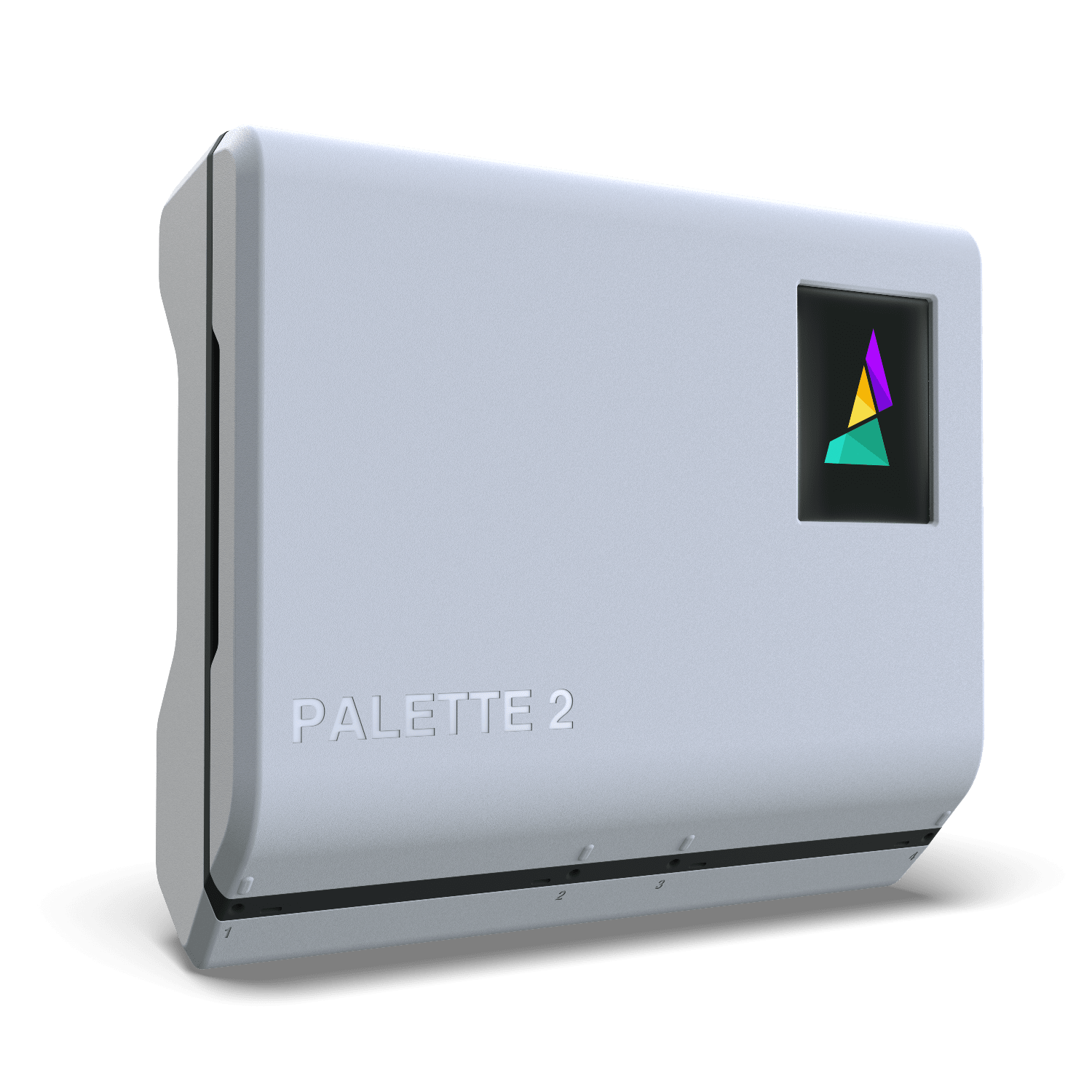

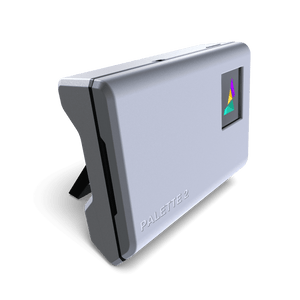

Palette 2

Four filaments combine and feed into your 3D printer. Palette 2 takes your builds to a whole new level.

Regular price $599.00 USD
Palette 2 is covered by a 90-day warranty
Delivery begins November 2018
For EU customers, VAT is calculated at checkout
Palette 2 Pro is covered by a 12-month warranty
Delivery begins Nov 2018 • Palette 2 Pro is sold out until Jan 2019 • Some units available on Amazon.com in Nov 2018
For EU customers, VAT is calculated at checkout

Unparalleled User Experience

Palette 2 works with your printer to provide you with the simplest multi-material printing process possible.

Soluble, flexible, rigid materials

Enrich your designs using soluble support, flexible materials, and rigid materials all in the same part.

Four colors, one nozzle

Harness new levels of communication and aesthetics by printing up to four colors in any given design.

​Plug-and-play setup

Get printing with Palette 2 in less than an hour with its guided setup process and CANVAS's online walkthroughs.

Run-out detection and correction

When one spool runs out, Palette 2 can automatically splice to another spool. Never run out of filament on long prints again.

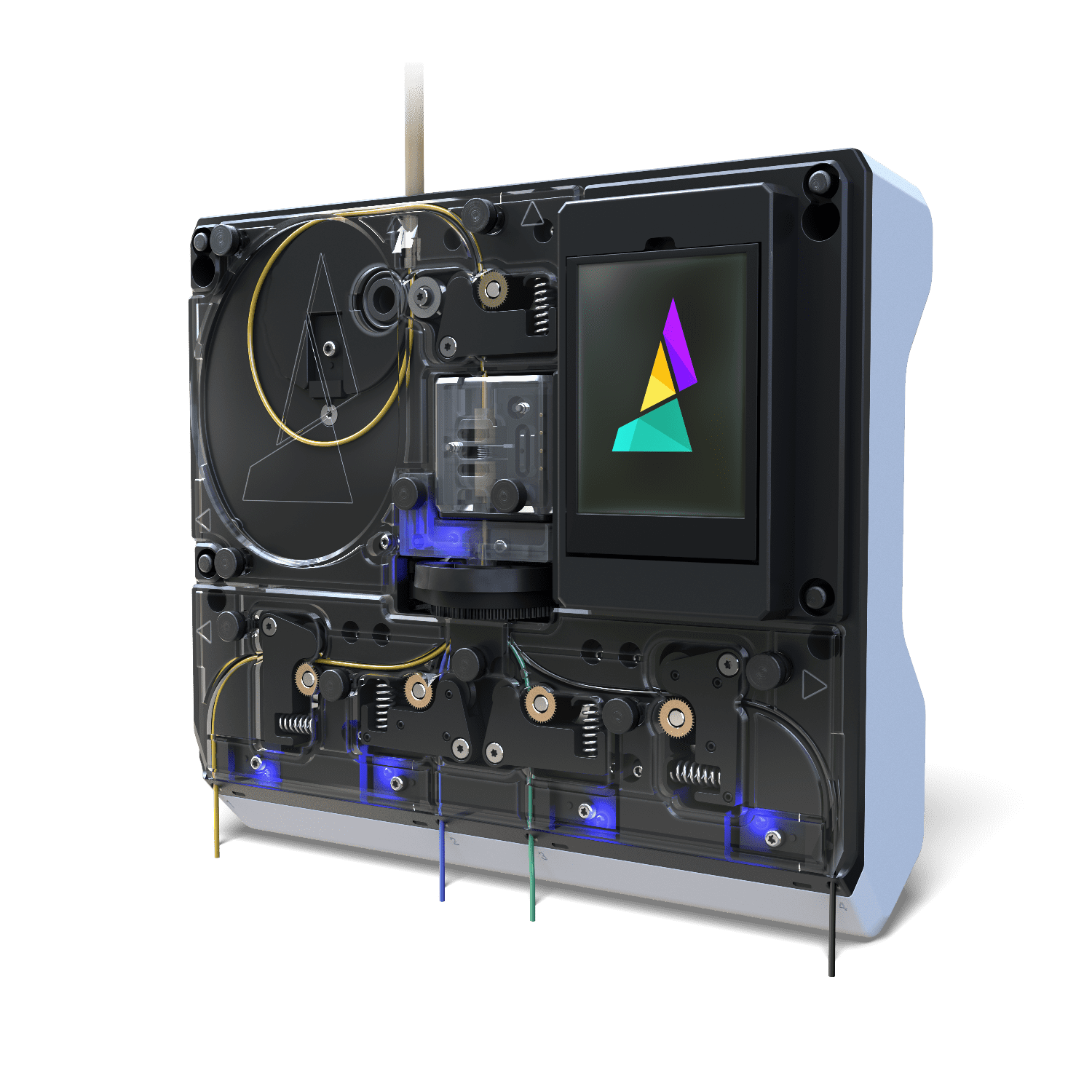

Quality built from the ground up

Technical Specs

Palette 2

Unit Weight

3.5 kg (7.7 lbs.)

Unit Dimensions

23 x 20.4 x 8.4 cm

(9" x 8" x 3.3")

Shipping Weight

7 kg (15.4 lbs.)

Shipping Box

41 x 27 x 23 cm
(16" x 11" x 9")

Supported Feedstock Size

1.75mm (0.069 IN) FFF Filament

Compatible Operating Systems

Windows, Mac, Linux (Tested on Ubuntu 16.04)

Data Interface

Canvas Hub (USB) or SD Card

Splicing Technology

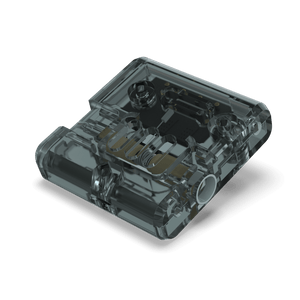

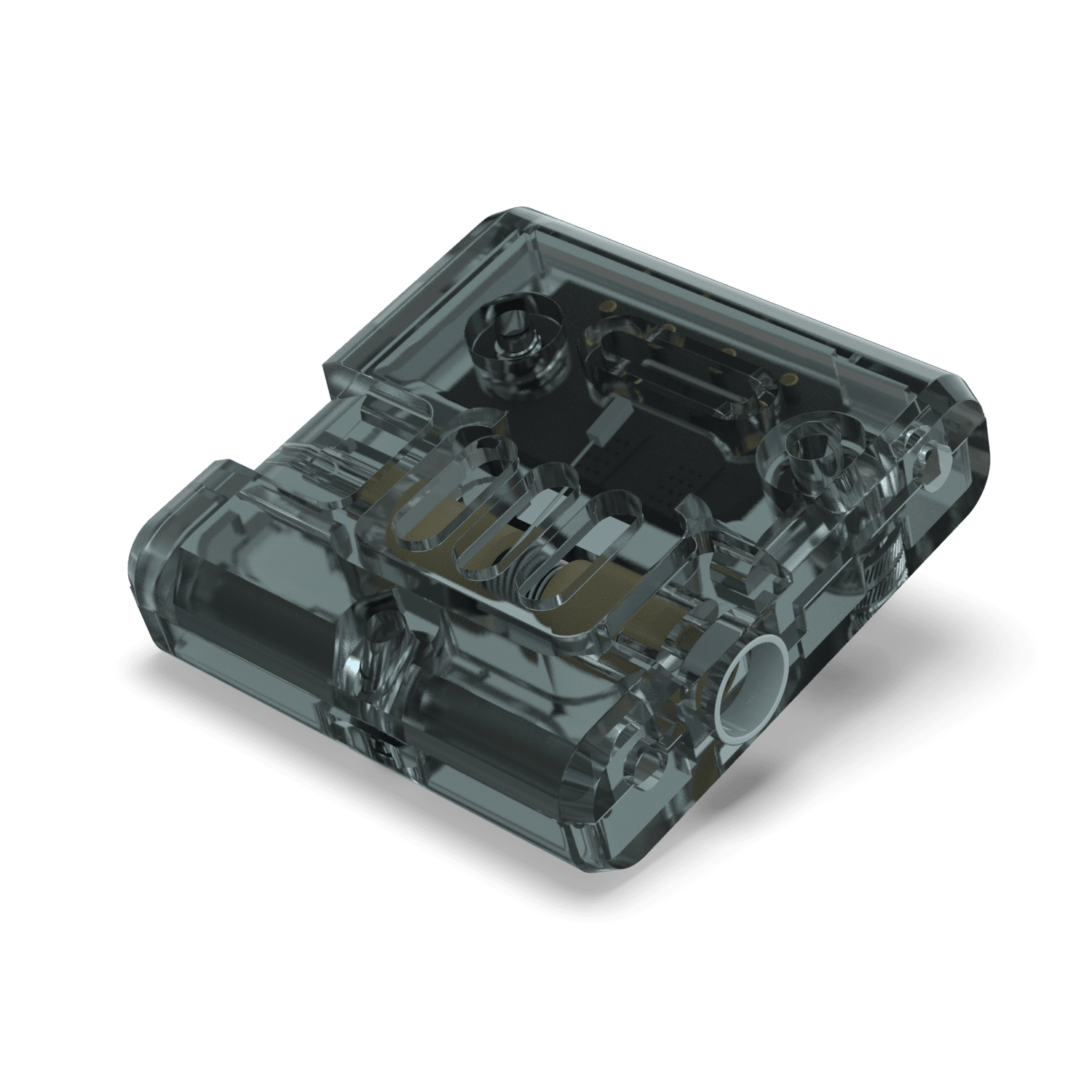

Splice Core 1.0, Solid State Splicer

Ambient Operating Temperature

15 - 30°C (60-86°F)

Control Board

32-Bit ARM Processor

Control Interface

3.2" Color Touch Screen
240x320 Pixels

Power Requirements

12V DC, 3A Max

Power Adapter Input Requirements

100 - 240V (50/60Hz) 1.5A

Power Adapter Compatibility

USA, UK, AU, EU

Mechanical

6 x Nema 17 Stepper Motors

Update Connection

USB (Cable Included)

Certifications

cTUVus, CE (Conformité Européene), TUV-Inspected Manufacturing Facility, CAN/CSA C22.2, NO 62368-1-14

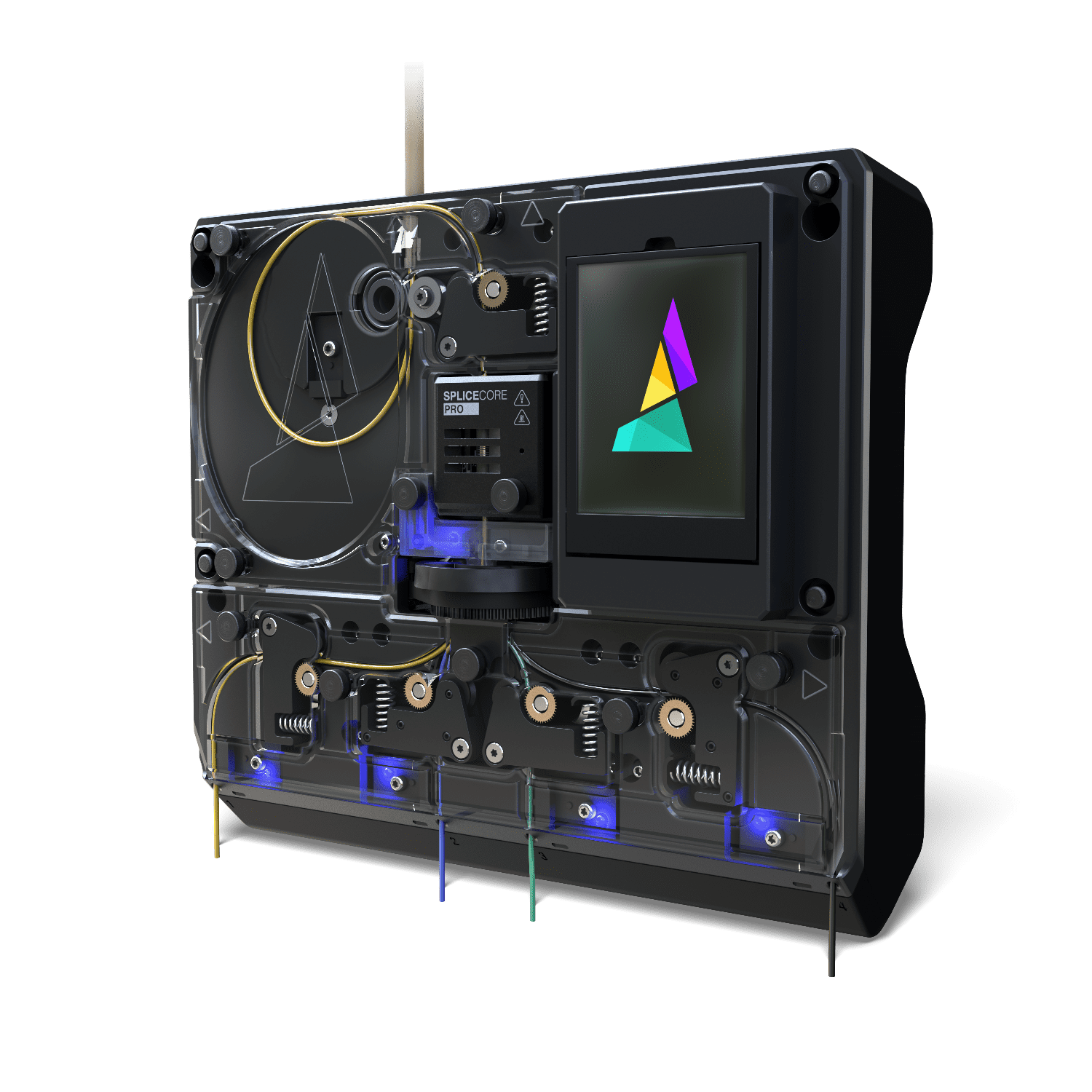

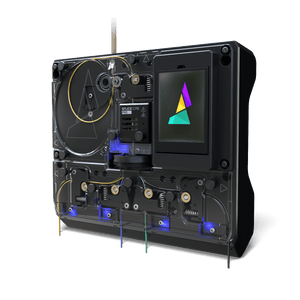

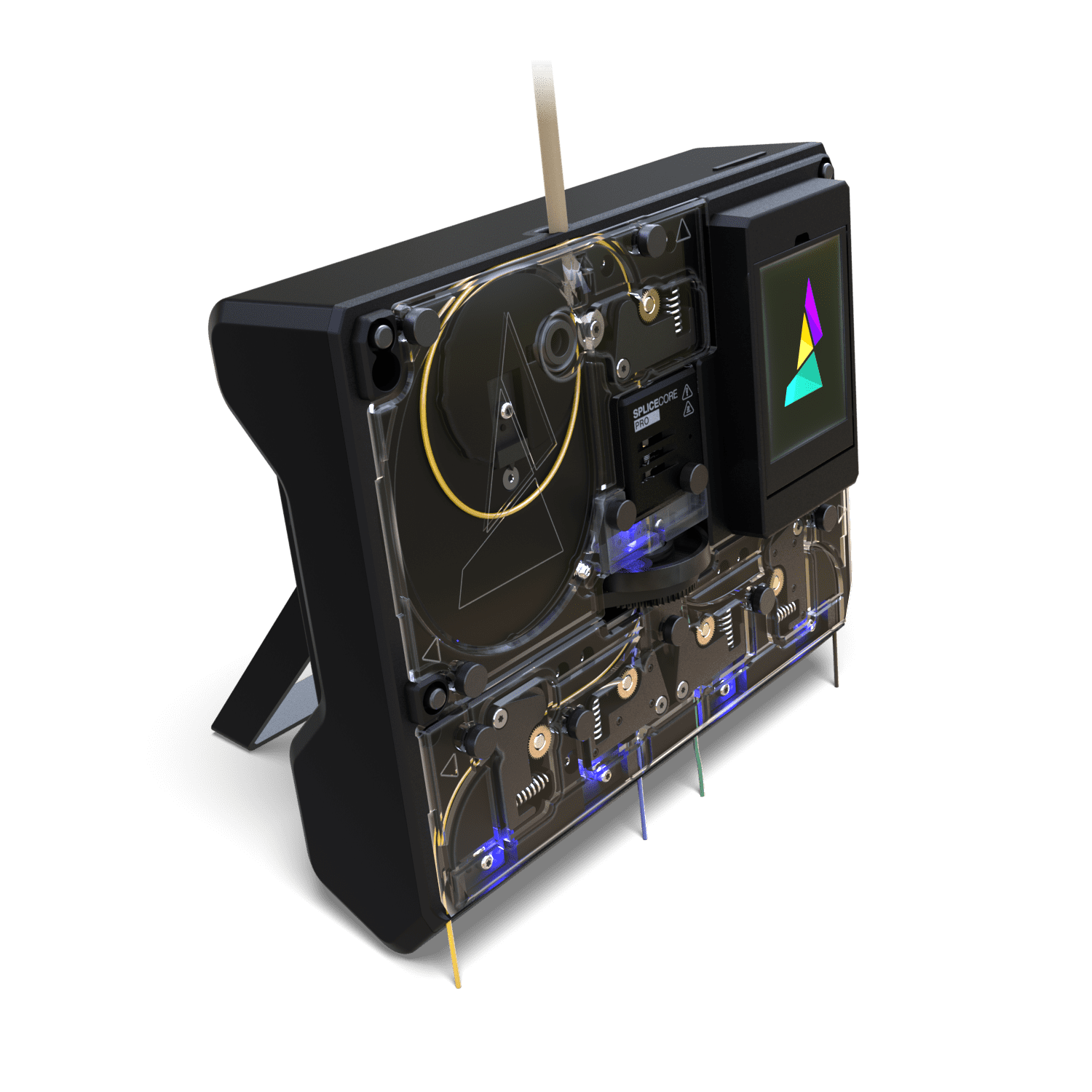

Palette 2 Pro

Unit Weight

3.6 kg (7.9 lbs.)

Unit Dimensions

23 x 20.4 x 8.4 cm

(9" x 8" x 3.3")

Shipping Weight

7.1 kg (15.6 lbs.)

Shipping Box

41 x 27 x 23 cm
(16" x 11" x 9")

Supported Feedstock Size

1.75mm (0.069 IN) FFF Filament

Compatible Operating Systems

Windows, Mac, Linux (Tested on Ubuntu 16.04)

Data Interface

Canvas Hub (USB) or SD Card

Splicing Technology

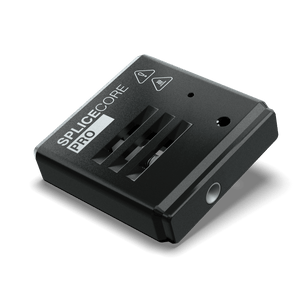

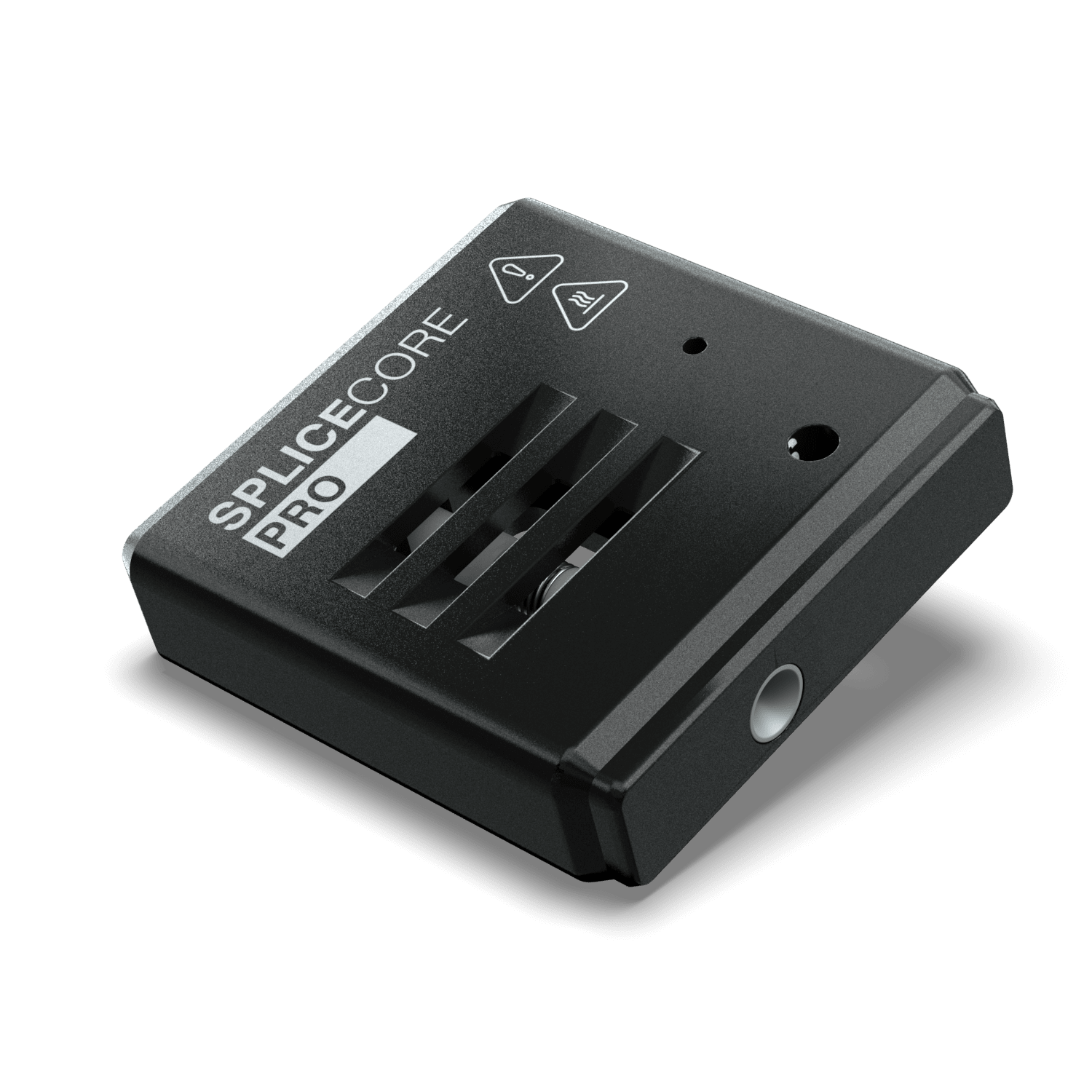

Splice Core Pro 1.0, Solid State Splicer

Ambient Operating Temperature

15 - 30°C (60-86°F)

Control Board

32-Bit ARM Processor

Control Interface

3.2" Color Touch Screen
240x320 Pixels

Power Requirements

12V DC, 3A Max

Power Adapter Input Requirements

100 - 240V (50/60Hz) 1.5A

Power Adapter Compatibility

USA, UK, AU, EU

Mechanical

6 x Nema 17 Stepper Motors

Update Connection

USB (Cable Included)

Certifications

cTUVus, CE (Conformité Européene), TUV-Inspected Manufacturing Facility, CAN/CSA C22.2, NO 62368-1-14

CANVAS Hub

Unit Weight

0.1 kg (0.2 lbs.)

Unit Dimensions

8.1 x 8.1 x 3.0 cm

(3.1" x 3.1" x 1.1")

Shipping Weight

1 kg (2.2 lbs.)

Shipping Box

27 x 21 x 6 cm
(11" x 8" x 2.5")

Control Interface

CANVAS via Web Browser

Compatible Operating Systems

Windows, Mac, Linux (Tested on Ubuntu 16.04)

Data Interface

USB for Printer and Palette 2, Wifi for Canvas

Memory

8GB Internal Storage

Ambient Operating Temperature

15 - 30°C (60-86°F)

Control Board

Raspberry Pi Zero W

Power Requirements

5V DC, 2A Max

Power Adapter Input Requirements

100 - 240V (50/60Hz) 0.4A

Power Adapter Compatibility

USA, UK, AU, EU
